Facing Heads
Facing Heads Single-Slide
FA
Single-SlideWEDGE PLUNGER
FA

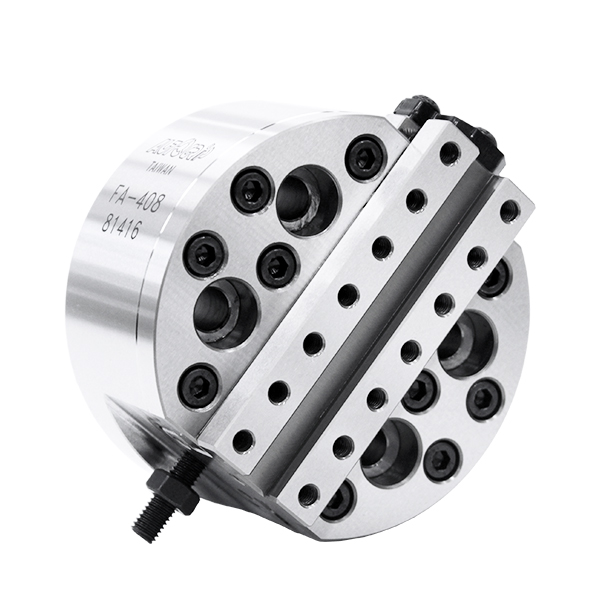

Single Slide Facing Head
Feed mechanism is Wedge Plunger, with steady feed speed. Simple adjustment for feed speed and stroke.
Matching surfaces of all parts hardened, grounding and lubricated directly. With rigidity and durability.
Stopper accurancy: ±0.03mm.
Suitable for using with RS type cylinder.
For precision processes, Wedge Plunger type facing heads are suitable for using with electro servo and ball screw mechanism.
Specification
| Model | Plunger stroke(Dia.) | Slider stroke(Dia.) | Max. speed | Max. feed speed | Weight | Matching cylinder | Max. pressure MPa (kgf/cm2) |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | min-1(r.p.m.) | mm/min. | (kg) | |||
| FA-408 | 15 | 8 | 1600 | 400 | 4.2 | RS-6520N | 1.0(10) |
| Model | Plunger stroke(Dia.) | Slider stroke(Dia.) | Max. speed | MAX D.B. PULL | I | Weight | Matching cylinder |
|---|---|---|---|---|---|---|---|
| (mm) | (mm) | min-1(r.p.m.) | kgf | kg．m2 | (kg) | ||
| FA-610 | 18 | 10 | 1200 | 280 | 0.04 | 14.5 | RS-6520N |
| FA-812 | 21 | 12 | 800 | 450 | 0.14 | 28.5 | RS-6530N |

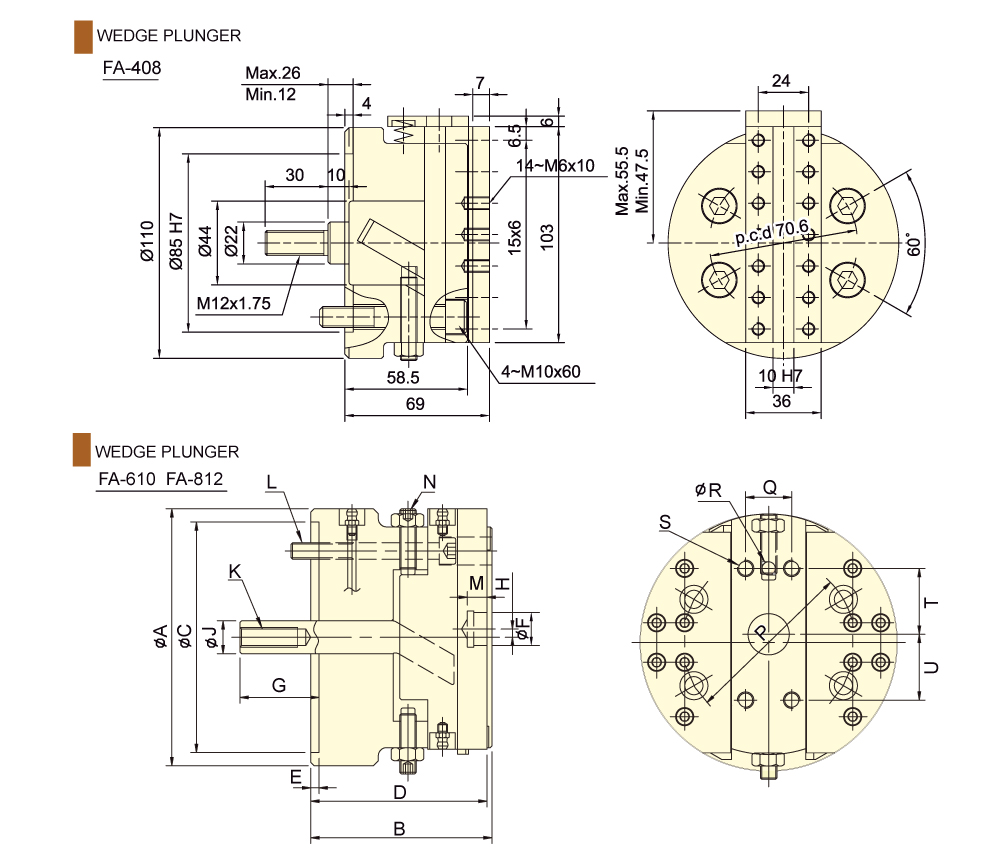

| Model | A | B | C(h6) | D | E | F(H7) | G max. | G min. | H | J | K | L | M | N | P | Q | R(H8) | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FA-610 | 156 | 110 | 140 | 107 | 5 | 20 | 66 | 48 | ±5 | 20 | M12x1.75 | 4-M10x90 | 12 | 2-M10x45 | 104.8 | 28 | 8 | 4-M10x16 | 40 | 40 |
| FA-812 | 198 | 130 | 170 | 127 | 5 | 25 | 84 | 63 | ±6 | 25 | M16x2.0 | 4-M12x105 | 12 | 2-M12x60 | 133.4 | 32 | 10 | 44-M10x16 | 50 | 50 |
| Model | A | B | C(H7) | D | E | F(H7) | G max. | G min. | H | J | K | L | M | N | P | Q | R(H8) | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FA-610 | 156 | 110 | 140 | 107 | 5 | 20 | 66 | 48 | ±5 | 20 | M12x1.75 | 4-M10x90 | 12 | 2-M10x45 | 104.8 | 28 | 8 | 4-M10x16 | 40 | 40 |
| FA-812 | 198 | 130 | 170 | 127 | 5 | 25 | 84 | 63 | ±6 | 25 | M16x2.0 | 4-M12x105 | 12 | 2-M12x60 | 133.4 | 32 | 10 | 4-M10x16 | 50 | 50 |
