Manual Chucks
Manual Chucks Self-centering
3MF
Non-Thru-Hole Self-centering
3MF

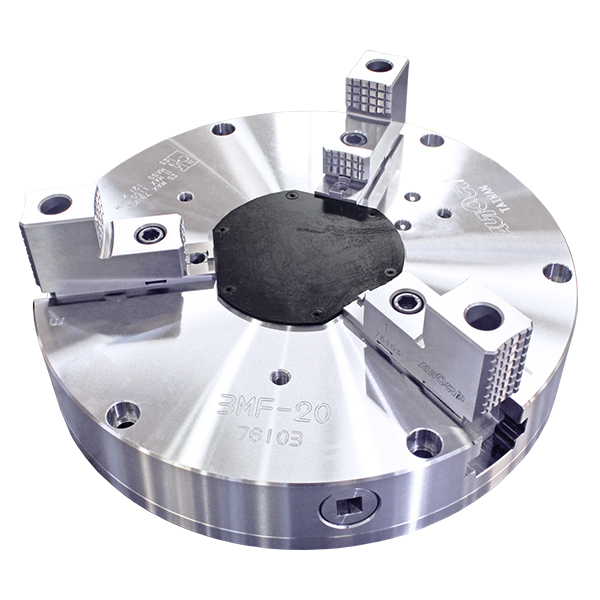

Self-centering 3-jaw manual chuck
Thin and lightweight design and increase the z-axis machining range.
With the center hole cover and dustproof design for the accuracy and service life of the chuck.
For 5-axis indexing plates and milling machines.
3MF series are not designed for the vertical or horizontal lathes, unless there is a rigid plate and providing adequate support rigidity and strength.
Specification
| Model | Jaw stroke (Dia) (mm) |
Chucking Dia | Max. allowable torque N．m (kgf．m) |
Max. clamping force kN (kgf) |
Max. speed min-1 (r.p.m.) |
Weight (kg) |
|
|---|---|---|---|---|---|---|---|
| Max. (mm) |
Min. (mm) |
||||||
| 3MF-20 | 80 | 500 | 142 | 170(17.3) | 71.2(7300) | 1150 | 121 |

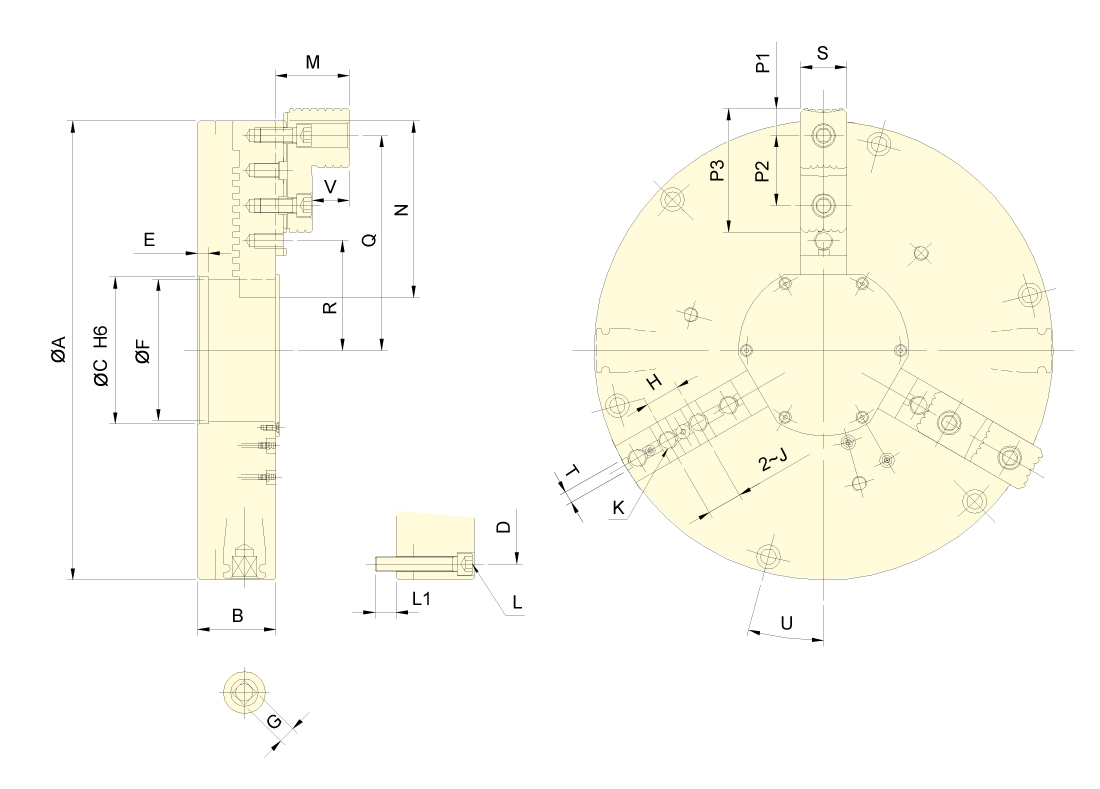

| Model | A | B | C(H6) | D | E | F | G | H | J(H7) | K | L | L1 | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3MF-20 | 500 | 85 | 160 | 465 | 12 | 155 | ☐19 | 38.1 | 19.03 | 4~M16 | 6~M16 | 23 | 80 |
| Model | N | P1 | P2 | P3 | Q max | Q min | R max | R min | S | T(h8) | U | V | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3MF-20 | 192.5 | 29.5 | 76.2 | 135 | 254 | 214 | 139.7 | 99.7 | 50 | 12.7 | 15° | 40 | 30 |
