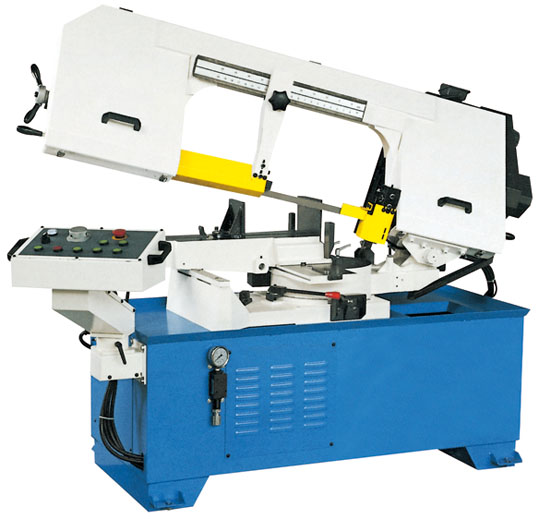

HORIZONTAL BAND SAW MACHINE
5"x18" Band Saw Machine(2 way swivel)-variable speed
C-330TH,CH-330-1ATH,CH-330-2ATH
C-330TH: Manual
CH-330-1ATH: Semi Automatic with saw bow lifting
CH-330-2ATH: Semi Automatic (saw bow lifting and hydraulic vise)
**Cutting Capacity**
1、Round：
A：0 degree-330mm
B：+/-45 degree-305mm
C：60 degree-204mm
2、Rectangular：
A：0 degree-127x458mm
B：+/-45 degree-229x305mm
C：60 degree-178x204mm
3、Square：
A：0 degree-305x305mm
B：+/-45 degree-280x280mm
C：60 degree-204x204mm
Specification
| Model | C-330TH | CH-330-1ATH | CH-330-2ATH |
| Motor | 2 HP | 2 HP | 2 HP |
| Speed | 50HZ 25-100Meter/Min | 50HZ 25-100Meter/Min | 50HZ 25-100Meter/Min |
| Band saw size | 27x0.9x3810mm | 27x0.9x3810mm | 27x0.9x3810mm |
| Install area | 2030x700x1110mm | 2030x700x1110mm | 2030x700x1110mm |
| Machine weight | 550 kgs | 550 kgs | 550 kgs |
| Packing size | 2223x990x1150mm | 2223x990x1150mm | 2223x990x1150mm |
