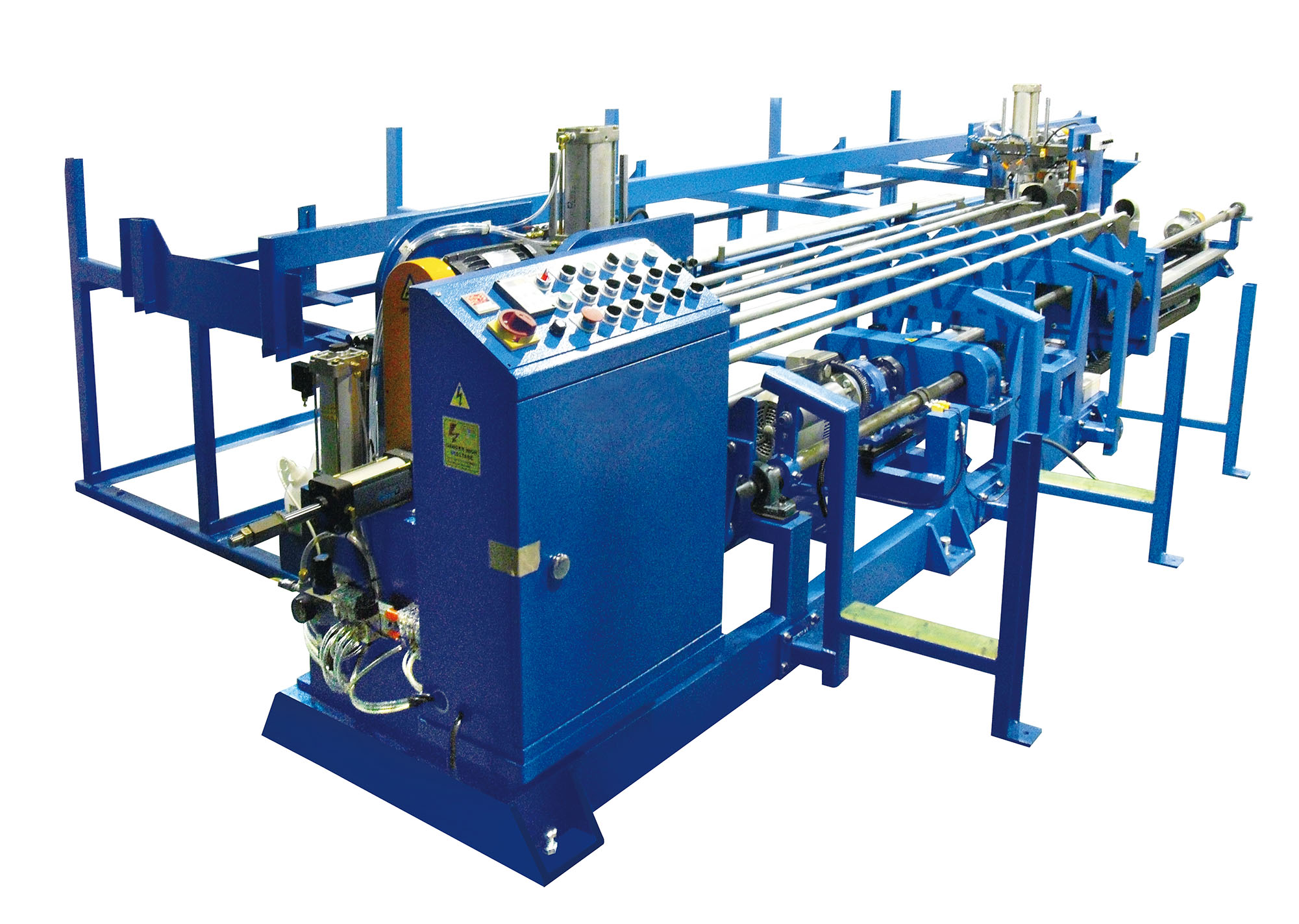

Features
a. The round tube can be repaired inside, outside and repaired at one time, fast and precise.
b. The cutter head uses a commercially available blade, which is easy to replace.
c. Two-stage feeding, the air stroke is smooth, and the working stroke can be adjusted stably according to the amount o cutting.
d. With manual and automatic function, it is convenient to adjust and adjust the machine.
e. Special automatic positioning device, which can automatically position, feed and chamfer, and fine-tune the length tolerance.
f. Oil mist lubrication cooling system can increase blade life without chipping.
g. The machine o the processing length can be divided into two kinds of A.600-3000mm, B1000-6000mm.
Standard Accessories
A Main machine & Transmitting system
B PLC control system
C Hydraulic system
D Standard insert head*2 pcs(including insert holder and insert*2 set)
E Clamp*1 set
F Insert clamping wrench
G Tool box
H Cutting oil spray system
| Model | C-60-4AL |
| Motor | 2 x 2 HP |
| Speed |
A:4P-2500/1430 rpm B:6P-1740/1000 rpm |
| Working length |
A:600-3000mm B:1000-6000mm |
| Pipe OD | 12-60 mm |
| Working pressure | 6-8 kg/cm2 |
| Machine Dimension(mm) |
(600-3000mm)-3155x5000x1400mm (1000-6000mm)-3155x8000x1400mm |
| Machine Weight(kg) |
(600-3000mm)-1800 kgs (1000-6000mm)-2000 kgs |
