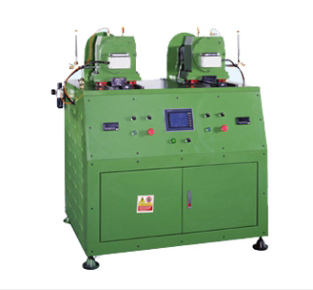

DRT-Single／Double Axis Head Oil Seal Rotation Test Machine
DRT-2-Single／Double Axis Head Oil Seal Rotation Test Machine
DRT-2
Features
-
Testing arbor can be run at clockwise and counter-clockwise.
-
Attached recorder for temperature, rotation speed and test time.
Specification
|
Type
|
DRT-S-1 Single Shaft | DRT-D-2 Double Shafts |
| Power | 2HP×1 | 2HP×2 |
| Test Shaft |
Single Shaft
|
Double Shaft
|
| Voltage |
According to The Customer’s Assignment
|
According to The Customer’s Assignment
|
| Heater |
1.0KW x 1
|
1.0KW x 2
|
| Principal Shaft R.P.M | Max. 15000RPM(rotate speed adjusted) | Max. 15000RPM(rotate speed adjusted) |
| Control mode | PLC. air pressure system and Touch Screen | PLC. air pressure system and Touch Screen |
| Working Range | Outer Diameter Ø20-Ø150 | Outer Diameter Ø20-Ø150 |
| Test temperature | Max. 180°C | Max. 180°C |
| Application |
Suitable for oil seals rotation durable life testing.
