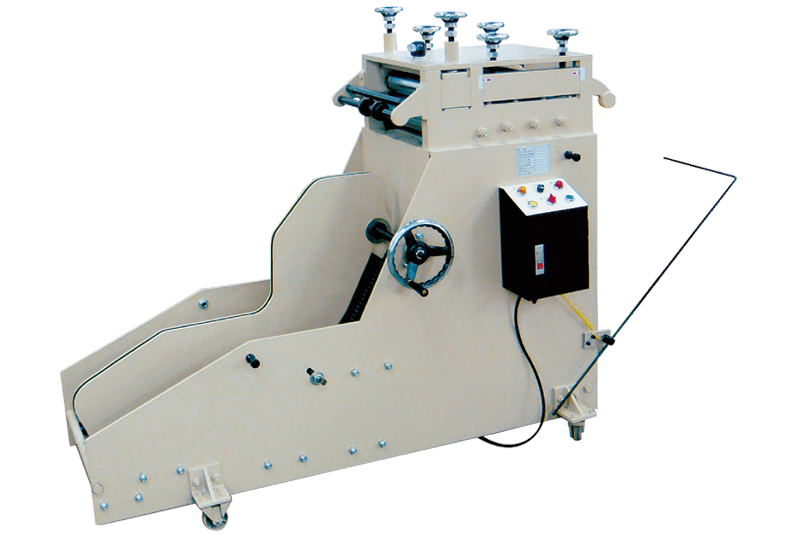

2 in 1 Compact Uncoiler & Straightener
CL、CLA TYPE - COMPACT UNCOILER & STRAIGHTENER
CL、CLA
● Friendly operation controlled by adopting the independent control cabinet.
● Customer can optional the dual inverter driving motorsto reduce the scratching problem of the material surface.
Specification
Specialty
- Height efficiency
- Saving space over 40%
CL Series
| Modle | CL-150 | CL-200 | CL-300 |
| Width of Material (mm) | 150 | 200 | 300 |
| Thickness of Material (mm) | 0.5 ~ 1.6 | ||
| Feeding Upper Rolls (mm) | 60 x 2 pcs | ||
| Feeding Lower Rolls (mm) | 80 x 2 pcs | ||
| Straightener Rolls (mm) | 50 x 7 pcs | 50 x 7 pcs | 50 x 7 pcs |
| Straightener Motor (HP) | 1/2 | 1 | 1 |
| Max. Coil O.D. (mm) | 1000 | ||
| Max. Coil Weight (kg) | 400 | 600 | 800 |
All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.
Standard Accessories
- Touch loop control sensor.
Optional Accessories
- Straightener dial gauge.
- Straightener inverter.
- Photoelectric sensor.
