Liquid Tight Connectors
MS Connector Adapter
C8096
Features:
*Steel, zinc plated.
* For connecting MS connector with flexible conduit.
* IP67.
* RoHS & REACH compliant

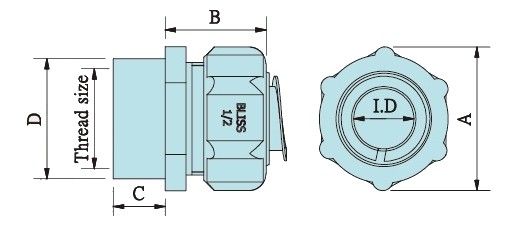

Specification
| Catalog Number | Trade size (inch) |
MS Size | I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Tread size (2B) (mm) |
(mm) |
MS-3057 |
Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C80960310 | 3/8" | 10SL, 12S | 11.5 | 29.0 | 22.5 | 12.0 | 21.0 | 5/8" - 24UNEF | 14.8 | 4A | 100 |
| C80960314 | 3/8" | 14S | 11.5 | 29.0 | 22.5 | 12.0 | 24.0 | 3/4"- 20UNEF | 17.7 | 6A | 100 |
| C80960318 | 3/48" | 18 | 11.5 | 29.0 | 22.5 | 12.0 | 29.0 | 1" - 20UNEF | 24.1 | 10A | 100 |
| C80960416 | 1/2" | 16, 16S | 14.5 | 34.5 | 22.5 | 12.0 | 27.0 | 7/8" - 20UNEF | 20.9 | 8A | 100 |
| C80960418 | 1/2" | 18 | 14.5 | 34.5 | 22.5 | 12.0 | 29.0 | 1" - 20UNEF | 24.1 | 10A | 100 |
| C80960420 | 1/2" | 20, 22 | 14.5 | 34.5 | 22.5 | 12.0 | 35.0 | 1-3/16" - 18UNEF | 28.7 | 12A | 100 |
| C80960618 | 3/4" | 18 | 19.5 | 41.5 | 28.0 | 12.0 | 30.0 | 1" - 20UNEF | 24.1 | 10A | 50 |
| C80960620 | 3/4" | 20, 22 | 19.5 | 41.5 | 28.0 | 12.0 | 35.0 | 1-2/16" - 18UNEF | 28.7 | 12A | 50 |
| C80960624 | 3/4" | 24, 28 | 19.5 | 41.5 | 28.0 | 12.0 | 41.0 | 1-7/16" - 18UNEF | 35.1 | 16A | 50 |
| C80961020 | 1" | 20, 22 | 25.0 | 46.0 | 31.5 | 12.0 | 35.0 | 1-3/16" - 18UNEF | 28.7 | 12A | 50 |
| C80961024 | 1" | 24, 28 | 25.0 | 46.0 | 31.5 | 12.0 | 41.0 | 1-7/16" - 18UNEF | 35.1 | 16A | 50 |
