Digital Refractometer

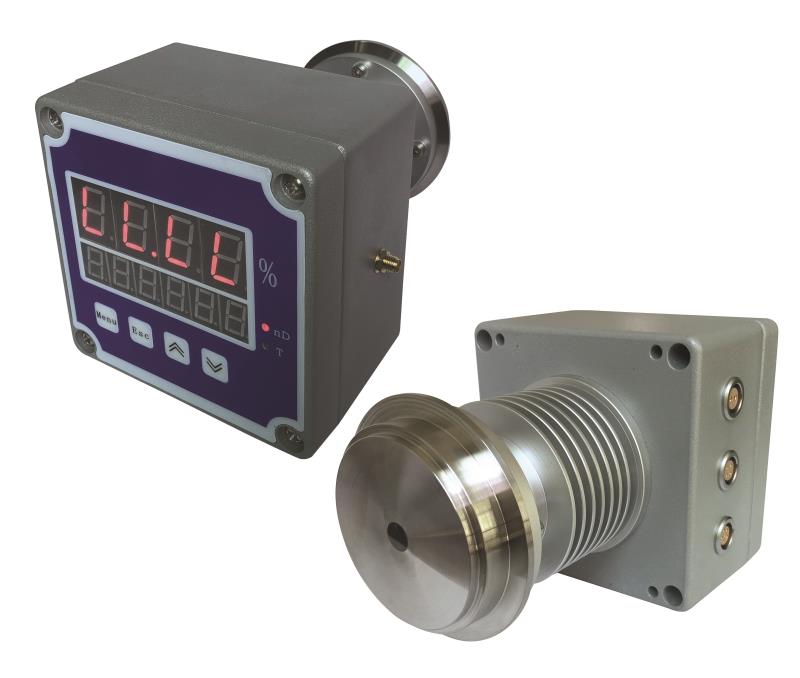

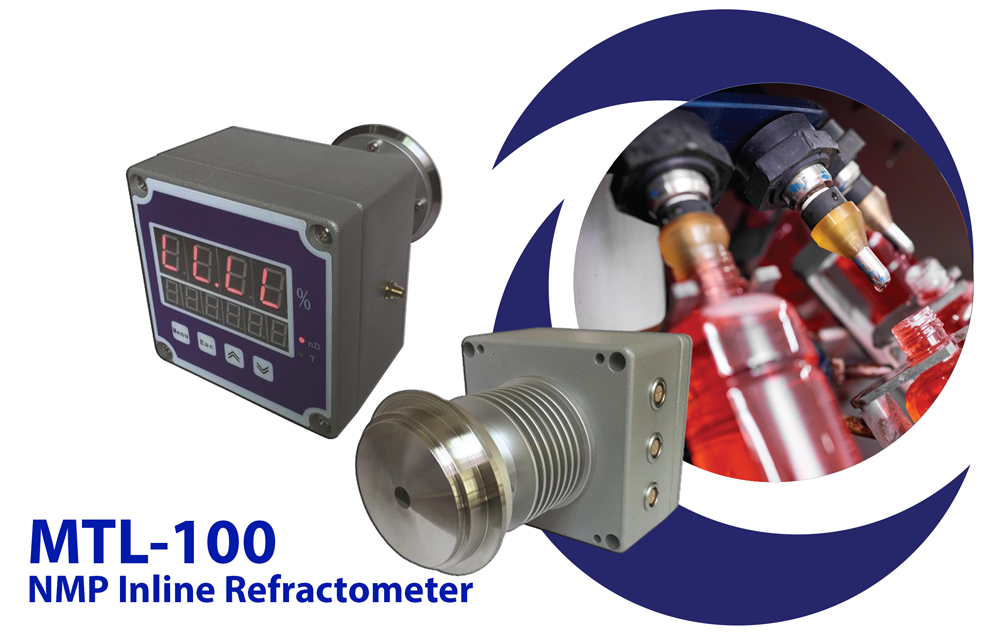

NMP Inline Refractometer
MTL-100
- Digital Brix Inline Refractometer Temperature Measurement Range：5℃~100℃
- Precision of Measurement temperature：±0.1℃
- Operation Temperature：5℃~40℃
- Automatic Temperature Compensation (ATC)
- IP 67
- Dimension ：90mm x 60mm
- Weight：3KG
Specification
Digital NMP Inline Refractometer Specifications
|
Range: |
NMP 0.00%~100.00% ND1.33299~1.47285 Temperature: 5~100℃(ATC) |
|
|
NMP 0.01% nD ±0.0001 |
|
Accuracy: |
NMP ±0.1% nD ±0.0002 |
|
IP: |
67 |
|
Environment working temperature: |
5℃~40℃ |
|
Environment working pressure(MAX):: |
2MPa |
|
Power In-put: |
DC24V |
|
Light Source: |
LED |
|
Output Mode: |
Ethernet 485 |
|
Size: |
90mm x 60mm |
|
Net Weight: |
3KGs |
|
Monitor shown: |
NMP % (concentration) Refractive Index (nD) Temperature (℃) |
