VERTICAL MACHINING CANTER

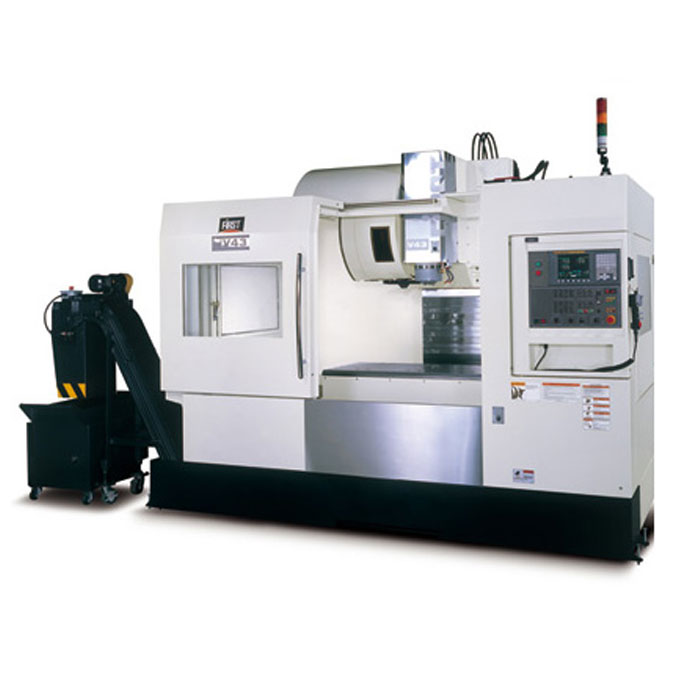

V33 / V43

Fully enclosed splashguard for elegant outlook. With standard flat-type removal mechanism. MEEHANITE cast iron for all major machine parts. Big diameter 3-Axis ball screws preload. Automatic central lubrication system. High efficiency. Excellent and stable accuracy.

MEEHANITE CASTING STRUCTURE

Certified meehanite cast iron formed a steady foundation as a rock. Heavy ribbed throughout for high rigidity and excellent mechanical and thermal stability.

3-axis linear guide ways for high speed feed rate and repeatability accuracy are guaranteed.
Heavy design on column and base to take more force from cutting.
Max. table load 1,000 kgs.

AUTOMATIC TOOL CHANGER

With standard Arm-type 24 tools magazine provides rapid, stable and reliable tool change, also it is controlled by PLC software for quicker tool selection to reduce non-cutting time.

BIG PRELOADED BALL SCREWS

Oversized ball screws Ø45mm for X/Y Axis; Ø50mm for Z Axis are directly driving on all 3 axes.
3-axis-ball screws preloaded for excellent feeding accuracy.
All axes are with high precision C3 grade ball screws.

HEIDENHAIN LINEAR SCALE (OPTION)

HEAVY DUTY LINEAR GUIDE WAYS

Linear guide ways are in roller bearing type. (X: 45mm, Y/Z:55mm).
Blocks with automatic central lubrication system

ZF GEAR BOX (OPTION)

precision and powerful German ZF brand gear box for heavy cutting solution.

COOLANT GUN

DIRECT DRIVE SPINDLE
(#40 OPTION)

RIGID HEAD STRUCTURE

6 blocks on Z axis linear way to take more force from cutting.
1,000 rpm belt type spindle as standard. (#40).

Specification

SPECIFICATION

Model	V33		V43
Travel
X-Axis	850 mm ( 33.5 " )		1,100 mm ( 43.3 " )
Y-Axis	600 mm ( 23.6 " )
Z-Axis	510 mm ( 20.1 " )
Spindle nose to table	120 - 630 mm( 4.7 X 24.8" )
Table
Table size	1,050 X 600 mm ( 41.3 X 23.6 " )		1,300 X 600 mm ( 51.2 X 23.6 " )
Floor to table	855 mm ( 33.7 ")
Max. table loading capacity	1,000 kgs( 2200 Lbs )
T-slot (number x width x pitch)	6 X 18 mm X 100 mm( 6 X 0.7 X 3.9 ")
Spindle center to column	600 mm ( 23.6 ")
Feed system
Rapid traverse speed	32 M/min ( 1259.8 " /min )
Feed motor (FANUC)	X/Y: 3.0kW (12 Nm) , Z: 7.0kW (30 Nm)
Ball screw diameter & pitch	X, Y : 45 mm ( 1.8 " ) Z:50 mm ( 2.0" ) / 12mm ( 0.5" )
Cutting feed rate	1 - 10,000 mm/min ( 0.04-393.7 "/min )
Type of transmission	Direct mounting
Spindle
Type of tool shank	BT 40 / CAT 40 / DIN 69871A	BT 50 / CAT 50 / DIN 69871A	BT 40 / CAT 40 / DIN 69871A	BT 50 / CAT 50 / DIN 69871A
Max. spindle speed	10,000 / 15,000 or 20,000 rpm (Op)	6,000 / 8,000 rpm (Op)	10,000 / 15,000 or 20,000 rpm (Op)	6,000 / 8,000 rpm (Op)
Spindle motor	11/15 kW / 7.5/11kW or 15/18.5 kW (Op)	15/18.5kW / 22/26kW (Op)	11/15 kW / 7.5/11kW or 15/18.5 kW (Op)	15/18.5kW / 22/26kW (Op)
Type of transmission	Belt / Direct drive or Build-in (Op)	Belt	Belt / Direct drive or Build-in (Op)	Belt
ATC
Tool storage capacity	24 Tools / 32 or 40 Tools (Op)	24 Tools / 32 or 40 Tools (Op)	24 Tools / 32 or 40 or 60 Tools (Op)	24 Tools / 32 or 40 Tools (Op)
ATC type	Arm type
Max. tool diameter	95/76/76 mm ( 3.7/3.0/ 3.0" )	110/127/127 mm (4.3/5/5")	95/76/76/76 mm ( 3.7/3.0 /3.0/3.0" )	110/127/127 mm (4.3/5/5")
Without adjacent tool	185/127/127 mm ( 7.3/5.0/ 5.0" )	200/228/228 mm ( 7.9/9/ 9" )	85/127/127/127 mm ( 7.3/5.0/5.0/5.0" )	200/228/228 mm ( 7.9/9/ 9" )
Max. tool length	300 mm ( 11.8 ")	350 mm ( 13.8 " )	300 mm ( 11.8 ")	350 mm ( 13.8 " )
Max. tool weight	7 kgs ( 15 Lbs )	15 kgs ( 32 Lbs )	7 kgs ( 15 Lbs )	15 kgs ( 32 Lbs )
Tool changing time (Tool to Tool)	1.8/1.5/1.5 sec	2.9 sec	1.8/1.5/1.5/1.5 sec	2.9 sec
Tool changing time (Chip to Chip)	5.5 sec	6 sec	5.5 sec	6 sec
Method of tool selection	Random selection
	Bi-directional magazine rotation
Tool display	Yes
Special tool management	Yes
Coolant system
Coolant tank size	445L		486L
Coolant capacity	105 L / min
Chip Flush capacity	125 L / min
Machine size
Machine height	2,920 mm (115.0 ")
Floor space	3,955 mm ( 155.7 ")(W) X 2,250 mm ( 88.6 " ) (D)		4,395 mm ( 173.0 " ) (W) X 2,250 mm ( 88.6 " )(D)
weight	8,200 kgs ( 18040 Lbs )		8,500 kgs ( 18700 Lbs )
Power source
Electrical power supply	25 KVA / 3PH，220V 50/60HZ
Compressed air supply	6.0 kgf/c㎡ (85psi)
Controller
	FANUC / HEIDENHAIN / SIEMENS

Edition / A09
* Specifications may different according to option accessories and are subject to change without notice.

Standard accessories
● Arm type ATC (24 tools) ● (#40) 10,000rpm spindle (Belt type) ● (#50) 6,000rpm spindle (Belt type) ● Spindle chiller ● Spindle coolant system ● Flat type chip conveyor ● Automatic lubrication system ● Portable electronic handwheel (FANUC) ● Working light ● Alarm light ● Spindle air blow ● Coolent gun

Optional accessories

● #40: Arm type ATC (32/40/60 tools)
● #50: Arm type ATC (30/40 tools)
● #40: 15,000rpm spindle (Direct drive)/ 20,000 rpmspindle (Built-in)
● #50: 8,000rpm spindle (Belt type)
● Coolant through spindle system
● 4th or 4+5th axis rotary table
● Heidenhain 3-Axis rotary table
● Working piece measurement system
● Tool length measurement system
● Heat exchanger on electrical cabinet
● Power transformer
● CE (Safety door interlock)
● ZF gear box
● Air gun
● Coolant gun (control from panel)
● Riser block 80/200/350mm
● Paper filter and Water cart
● 45 degree control panel
● ATE cover
