Tapping Machine
Precision Electronic Tapping and Drilling Machine
KST-340,560,670
Highly Efficient ; Precision ; Stable and Noiseless !

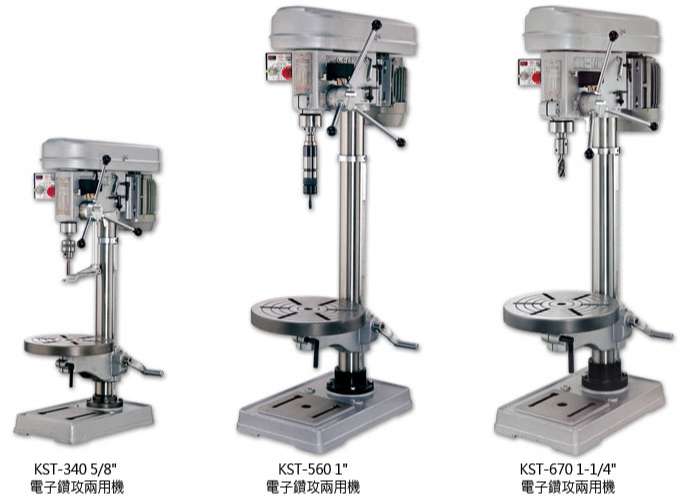

KST-340 5/8" Electronic Drilling Tapping Machine
KST-560 1" Electronic Drilling Tapping Machine
KST-670 1-1/4" Electronic Drilling Tapping Machine
Specification
FEATURES
The clutch controlled tapping machine is suitable for small lot and thin sheet metal. For mass production, the electronic tapping machine is suggested for effortless and fast tapping operations.
unit : mm
| MODEL | KST-340 | KST-560 | KST-670 | |
| A | Diameter of quill | Ø65 | Ø80 | Ø95 |
|---|---|---|---|---|
| B | Spindle taper | MT2# | MT3# | MT3# (MT4 #) |
| C | Spindle step | 9 | 9 | 9 |
| D | Spindle travel | 85 | 115 | 140 |
| E | Spindle to column | 175 | 214 | 230 |
| F | Spindle to table | 430 | 660 | 630 |
| G | Spindle to base | 610 | 950 | 930 |
| H | Drilling capacity | Ø3-Ø16 | Ø6-Ø30 | Ø8-Ø32 |
| I | Tapping cap. Steel | Ø5-Ø10 | Ø8-Ø16 | Ø8-Ø19 |
| Tapping cap. Cast iron | Ø5-Ø13 | Ø8-Ø19 | Ø8-Ø21 | |
| J | Cover sizes | 608x214x110 | 727x255x137 | 725x262x157 |
| K | Column diameter | Ø80 | Ø92 | Ø102 |
| L | Table diameter | Ø320 | Ø380 | Ø420 |
| M | Base sizes | 500x300 | 615x385 | 615x385 |
| N | Speed 50Hz | 170-2300 | 110-1450 | 120-1500 |
| Speed 60Hz | 200-2700 | 130-1700 | 150-1700 | |
| O | Motor | 1/2；1(HP) | 1(HP) | 2(HP) |
| P | Machine sizes | 680x320x1085 | 780x380x1510 | 840x420x1545 |
| Q | Machine weight | 100kg | 157kg | 205kg |
Hexangular collets and chucks and other accessories are not included for the above machine products / King Sang Machines.
Electronic Drilling Tapping Machine Parts Drawing
