Knuckle joint link drive two points cold forging press-KL2 Series

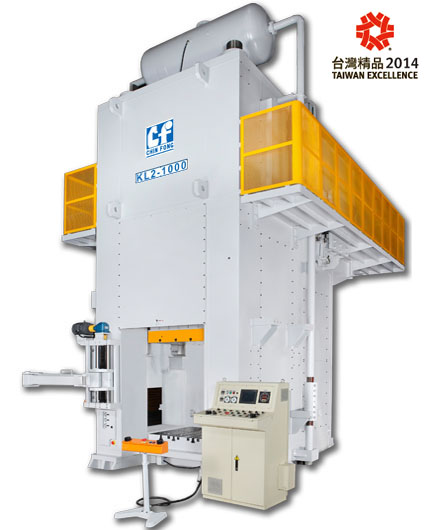

KL2 -1000
KL2 series features with long stroke length above 400mm. It can be applied in driving shaft forging application with long rod/shaft dimension. Especially for automotive industry, hand wheels and engine parts.
Specification
| Product | KL2-400 | KL2-630 | KL2-800 | KL2-1000 | KL2-1200 | KL2-1600 |
|---|---|---|---|---|---|---|
| Capacity-ton | 400 | 630 | 800 | 1000 | 1200 | 1600 |
| Rated Tonnage Point-mm | 15 | 15 | 15 | 25 | 25 | 25 |
| Stroke Length-mm | 400 | 400 | 400 | 500 | 500 | 600 |
| Strokes Per Minute-S.P.M. | 25-45 | 25-40 | 25-35 | 15-30 | 15-30 | 15-25 |
| Die Height (S.D.A.U.)-mm | 1000 | 1000 | 1100 | 1100 | 1200 | 1200 |
| Bolster Area (L.R. x F.B.)-mm | 1000x700 | 1200x800 | 1200x800 | 1400x900 | 1400x900 | 1500x1000 |
| Slide Area (L.R. x F.B.)-mm | 1000x700 | 1200x800 | 1200x800 | 1400x900 | 1400x900 | 1500x1000 |
| Product | KL2-2000 |
|---|---|
| Capacity-ton | 2000 |
| Rated Tonnage Point-mm | 25 |
| Stroke Length-mm | 600 |
| Strokes Per Minute-S.P.M. | 15-25 |
| Die Height (S.D.A.U.)-mm | 1200 |
| Bolster Area (L.R. x F.B.)-mm | 1600x1200 |
| Slide Area (L.R. x F.B.)-mm | 1600x1200 |
- High rigidity frame structure
- Reinforced design to afford eccentric loading
- Safe and quick stick release device
- Mutiple link-drive mechanism
- Hydraulic clutch and brake
