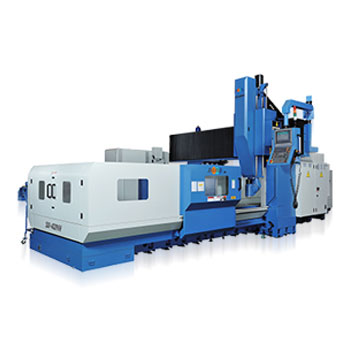

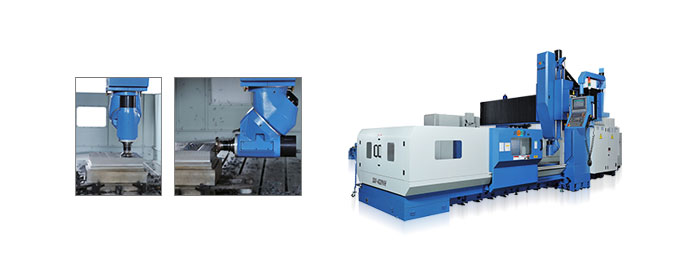

CNC Double Column Machining Center (SDV-VH)
SDV-VH
Specification
| Item / Model | Unit | SDV-3229 / 3234 / 4224VH | ||||
| X-Axis Travel | mm | 3200 /3200 / 4200 | ||||
| Y-Axis Travel | mm | 2900 / 3400 / 2400 | ||||
| Z-Axis Travel | mm | 760(1000 / 1200 / 1400 ) | ||||
| Table Size | mm | 3000x2200 / 3000x2700 / 4000x1700 | ||||
| T-Slots Dimension | mm | 22(24、28) | ||||
| Table Load Capacity | kgs | 10000 / 12500 / 12000 | ||||
| Distance Between Columns | mm | 2500 / 3000 / 2000 | ||||
| Distance From Spindle Nose To Table | mm | V – 250 ~ 1010 mm ( 250 ~ 1250 mm )( 250 ~ 1450 mm )( 250 ~ 1650 mm ) H – 280 ~ 1040 mm ( 280 ~ 1280 mm )( 280 ~ 1480 mm )( 280 ~ 1680 mm ) |
||||
| Spindle Taper Tool Shank | ISO NO.50 BT-50、CAT-50、DIN 69871 | |||||
| Spindle Speed Range | rpm | 3000(5000) rpm | ||||
| Main Motor Output (30 Min Rating/Cont) |
HP | 35 / 30 | ||||
| Rapid Traverse Rate X,Y-Axis | mm/min | 12000 | ||||
| Rapid Traverse Rate Z-Axis | mm/min | 12000(15000) | ||||
| Cutting Feed Rate | mm/min | 1~5000(1~8000) | ||||
| Minimum Input Increment | mm/min | 0.001 | ||||
| Tool Magazine Capacity | pcs | (20/ 32/ 40/ 60) | ||||
| Max.Tool Diameter /Adjacent Pockets Empty |
mm | Ø125 / Ø210 | ||||
| Max. Tool Length (From Gauge Line) |
mm | 350 | ||||
| Max. Tool Weight | kgs | (18/ 20 ) | ||||
| Tool Selection Method | (ABS, Random Bi) | |||||
| Tool Change Time (T-T) (Approx) | secs | 8(4.5) | ||||
| Power Requirement | Kva | 40(45) / 40(45) / 45(50) | ||||
| Floor Space Requirement | mm | 9400x6500 / 9400x7000 / 11400x6000 | ||||
| Machine Height From Floor Level | mm | 4650(4990)(5520)(6110) | ||||
| Machine Weight (Approx) | kgs | 31500 / 34500 / 33500 | ||||
| CNC Controller | Fanuc,Meldas,Siemens, Heidenhain series etc. | |||||
| Positioning Accuracy | mm | JIS B6338 0.01/300, VDI 3441 P0.025JIS B6338 0.01/300, VDI 3441 P0.035 | ||||
| Repeatability Accuracy | mm | ±0.003±0.005 | ||||
| STANDARD ACCESSORIES | |
| 1. LUBRICATION SYSTEM 2.GLAZED WINDOW-TYPE SPLASH GUARD 3.SCREW-TYPE CHIP CONVEYOR 4.LINK-TYPE CHIP CONVEYOR 5.COOLANT EQUIPMENT 6.SPINDLE OIL COOLER 7.Z-AXIS HYDRAULIC BALANCE UNIT 8.PNEUMATIC UNIT 9.AIR BLOW FOR CHIP(BY M-CODE) |
10.WORK LAMP 11.AUTO POWER-OFF SYSTEM 12.M.P.G 13.PROGRAM END&ALARM LAMP 14.RS-232 INTERFACE 15.LEVELING BLOCK AND BOLTS 16.TOOL KIT 17.MAINTENANCE AND OPERATION MANUAL 18.INSPECTION LIST |
| OPTIONAL ACCESSORIES | |
| 1.AUXILIARY TABLE 2.NC(ROTARY TABLE,INDEX TABLE) 3.20/32/40/60 ATC MAGAZINE CAPACITY 4.TOOL PRESETTER 5.AUTO TOOL LENGTH DIAMETER MEASUREMENT 6.AUTO TOUCH PROBE SYSTEM 7.LINEAR SCALE FEEDBACK 8.COOLANT THROUGH SPINDLE SYSTEM |
9.OIL HOLE TOOL SHANK DEVICE 10.COOLANT AUTO AIR MIST DEVICE 11.COOLANT NOZZLE ANGLE REMOTE CONTROL 12.SPINDLE THERMAL COMPENSATION |
Note:
1.To research and improve our company keep thr right of changing design and structure at
any time, this data is just for reference.
2.We can make special specification for your order.
