Heavy-Duty&Anti-Vibration Operation Series

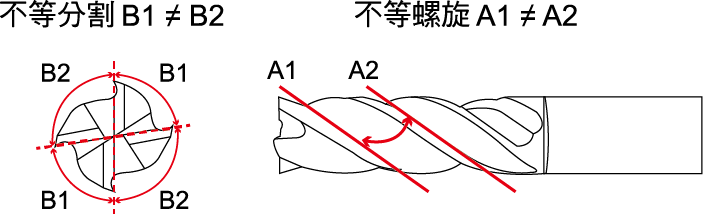

ERLD (Highly-Efficiency Anti-Vibration Operation,Long Flute Length),4 Flutes
ERLD
Remarks: For other specifications, please call to inquire.
Specification
Unit：mm
|
Model No. |
D Diameter |
I Flute Length |
C Chamfer |
d Shank Diameter |
L Overall Length |
|
2D ERLD 0104GR |
1 |
5 |
4 |
50 |
|
| 2D ERLD 0104GRD6 | 1 | 5 | 6 | 50 | |
|
2D ERLD 0154GR |
1.5 |
8 |
4 |
50 |
|
| 2D ERLD 0154GRD6 | 1.5 | 8 | 6 | 50 | |
|
2D ERLD 0204GRD6 |
2 |
10 |
6 |
50 |
|
|
2D ERLD 0254GRD6 |
2.5 |
13 |
6 |
50 |
|
|
2D ERLD 0304GRD6 |
3 |
15 |
6 |
50 |
|
|
2D ERLD 0404GRD6 |
4 |
20 |
6 |
75 |
|
|
2D ERLD 0504GR |
5 |
25 |
6 |
75 |
|
|
2D ERLD 0604GR |
6 |
30 |
0.2 |
6 |
75 |
|
2D ERLD 0704GR |
7 |
35 |
0.2 |
8 |
100 |
|
2D ERLD 0804GR |
8 |
40 |
0.2 |
8 |
100 |
|
2D ERLD 0904GR |
9 |
45 |
0.2 |
10 |
100 |
|
2D ERLD 1004GR |
10 |
50 |
0.2 |
10 |
100 |
|
2D ERLD 1204GR |
12 |
50 |
0.2 |
12 |
100 |
|
2D ERLD 1604GR |
16 |
80 |
0.2 |
16 |
150 |
|
2D ERLD 2004GR |
20 |
80 |
0.2 |
20 |
150 |
