Tapping Machine
Precise Automatic Tapping Machine

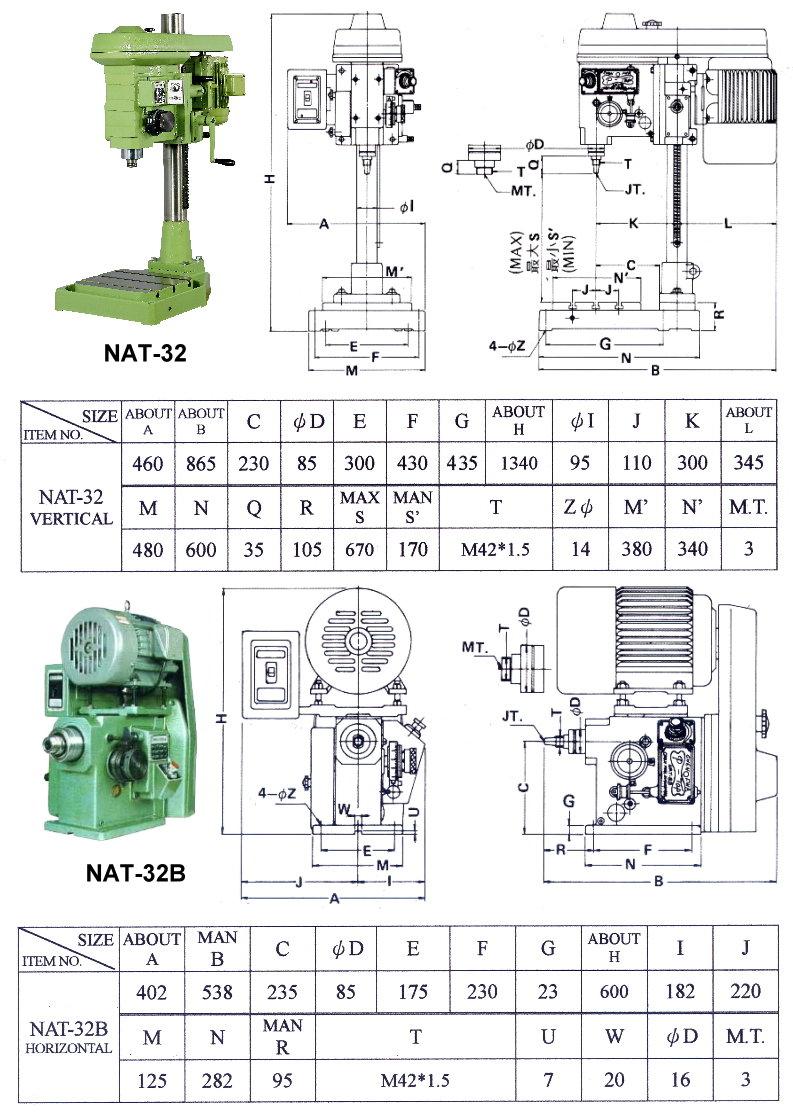

NAT-32,NAT-32B


  • Pitch gear tool feed, one circle feed, one pitch--this is a unique feature of the CHEN FWA Precise Tapping Machine, which has following merits:

    • One circle feed, one pitch, working piece will not rotate without adding pressure or clamping device.

    • Both unfamiliar and skilled workers can operate this machine well, which is helpful to increase efficiency and quality workmanship.

    • Spindle pulley will slip and spindle will stop when tap meets resistance or machine reaches overload. This situation is controlled by a safety clutch, which can reduce the force from cutting and torque of tap and protect tap from being damaged.

    • All automatic tapping machines can be mounted with multiple spindle heads that can increase productivity and produce unique whole-screw threading.

    • Upward Multi-Spindle Auto Tapping Machine increase production rate with robot combination.




Specification

Item No. Model NAT-32 NAT-32B
Tapping Capacity mm M10~M32 M10~M32
Possible Tapping Standard Pitches
Metric Ritch		 mm 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5 1.0 1.25 1.5 1.75 2.0 2.5 3.0 3.5
Possible Tapping Standard Pitches
Thread Per Inch		 mm 32, 28, 26, 24, 20, 19, 18, 16
14, 13, 12, 11 1/2, 11, 10, 9, 8, 7		 32, 28, 26, 24, 20, 19, 18, 16
14, 13, 12, 11 1/2, 11, 10, 9, 8, 7
50Hz Spindle Speed r.p.m. 200, 100, 50 200, 100, 50
60Hz Spindle Speed r.p.m. 240, 120, 60 240, 120, 60
Swing mm 460 -
Max. Spindle Stroke mm 65 65
Max. Distance From Spindle To Stroke mm 670 -
Spindle Taper mm MT-3 MT-3
Working Surface Of Base mm 340 x 380 -
Base mm 480 x 600 -
Max. Height Overal mm 1340 600
Motor power 3Ø 2HP x 6P 3Ø 2HP x 6P
Net Weight(Approx) kgw 200 130
