Tapping Spindle
Tapping Head

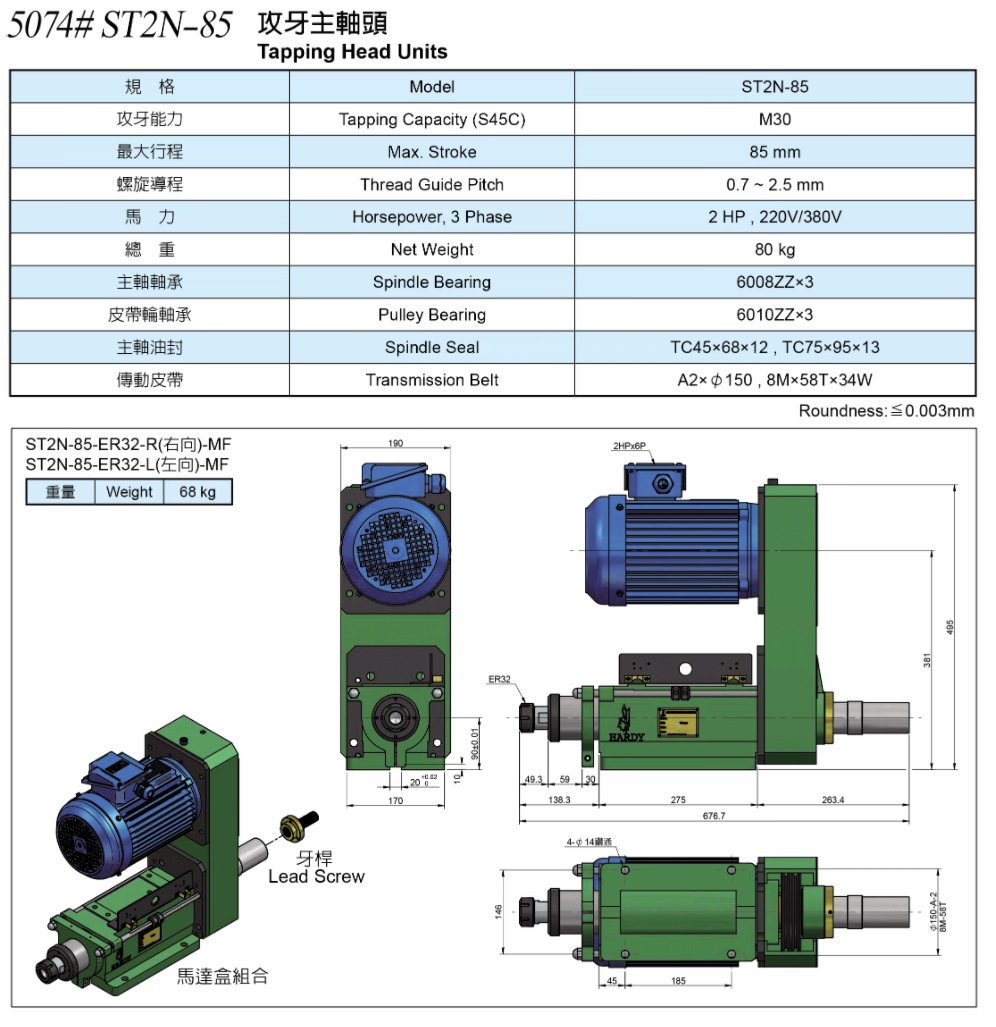

ST2N
ST2N tapping spindle unit is designed with lead screw transmission and supported automatic thread cutting and float tap chuck. The maximum tapping capacity is M30 (S45C).
Specification
． Standard 3-phase AC motor 1.5kW is included, optional maximum power up to 2.2kW
． Belt driven at fixed speed and incorporate a timing or V belt
． Spindle taper ER32, NT30, MT3, FB20 and AS32 are available
． Available for servo driven at variable speeds
． OMRON proximity switch sensors and stand are furnished
． AC Induction Motor protection IP 54
． Gearbox motor is available upon request
